Digital Camera Battery Chargers
Replacement Prof. Camcorder Battery Chargers
Specifications
Product Code:
AVMP550
Input Voltage:
100-240 V
Output Voltage:
4.2 V
Output Current:
1 A
Compatibility
JVC
AA-V67 AA-V68 AA-V80
AA-V67EK AA-V80EA AA-V67EG
AA-V68KR
PANASONIC
VW-AD1 VW-AD3 LSSQ0239
LSSQ0219
SONY
DC-VM50 BC-VM50 AC-V700
AC-V700 BC-V500 BC-V500
BC-V615 DV-V700 PC-VM50
AC-VQ800 AC-VQ850 AC-VQ850
AC-SQ950 DC-VQ800 AC-V700A
BC-V615A ACV-400A AC-VQ850D
AC-V615/B AC-V900/B AC-SQ950B
AC-VQ1050B
Fit Models
Camcorder Battery Chargers
RCA
BB-65L
SONY
NP-QM50 NP-F950 NP-QM51
NP-F960 NP-FM50 NP-F970
NP-FM51 NP-FM30 NP-F330
NP-F550 NP-F530 NP-F570
NP-F750 NP-F770 NP-F930
NP-F950/B NP-F970/B NP-F930/B
JVC
BN-V814 BN-V812 BN-V814U
BN-V812U
PANASONIC
PV-DBP5 VW-B202 VW-VBD1
VW-VBD2 AG-BP15P VW-VBD1E
VW-VBD2E CGR-B202A CGR-B/814
CGR-B/202 CGR-B/403 CGR-B/202A1B
CGR-B/202E1B
HITACHI
VM-BPL13 VM-BPL27 VM-BPL30
VM-BPL60 VM-BP27A VM-BPL13A
VM-BPL13J VM-BPL27A
Digital Camera Battery Chargers
SONY
NP-FM500H


Battery Charger Description

The AVMP charger is for video camcorder and digital camera Li-ion batteries. It is suitable for different battery models to use,only to change the plate which is located on the top of the charger.



(A) How to change the charger plate

Part I: Release the charger plate


Step 1:
Press the buttons, located on the bottom of the charger.


Step 2:
Charger plate release from the base.


Step 3:
Took out the plate.

Part II: Install the new charger plate


Step 1:
Ready a new charger plate.


Step 2:
Install the front into the charger base and press the end down to the base.


Step 3:
Complete the installation.

(B) Charging method

Our Battery Charger have two charging method: AC Adapter and Car cord, They allow you to charge your battery at home or in the car conveniently.



Method 1:
Power by AC Power Adapter


Method 2:
Power by DC Car Cord

(C) Check the charging status



The LED indicator will show the charging status.

Here are the steps for using the charger

1.      Connect the supplied AC power adaptor to the DC in-jack of the battery pack charger base.

2.      Plug the AC power adaptor into a wall outlet.

3.      LED indicator "STATUS" shows RED when the charger is ready for charging.

4.      LED indicator "CHARGE" is off when the AC power adaptor is not properly plugged into a wall outlet or the DC in-jack is not securely connected to the charger base.

5.      LED indicator "CHARGE" flashes GREEN indicates that there is no battery pack placed into the charger for charging or the battery is being taken out of the charger.

6.      LED indicator "CHARGE" turns RED when the battery pack is placed into the charger for charging.

7.      LED indicator "CHARGE" flashes RED and GREEN alternatively when battery pack reaches 90%.

8.      LED indicator "CHARGE" turns steady GREEN when the battery pack is fully charged.

9.      Slide the battery pack out after the battery pack is fully charged.

10.        LED indicators "STATUS" and "CHARGE" go out after power unplugged.

11.        Before charging your battery pack, make sure that the supplied AC adapter is properly connected to the battery charger; and the LED indicators of “STATUS” & “CHARGE” on the charger base should be on.

User Manual

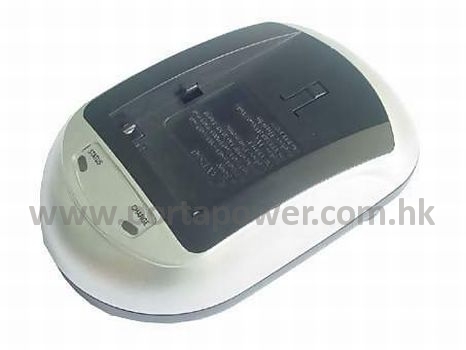

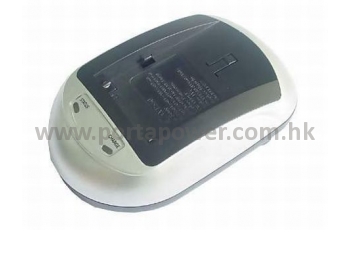

Charger Base
AVMP
Charger Base
Dimensions: 105.92 x 67.64 x 35.01 mm
Weight: 61.5 g

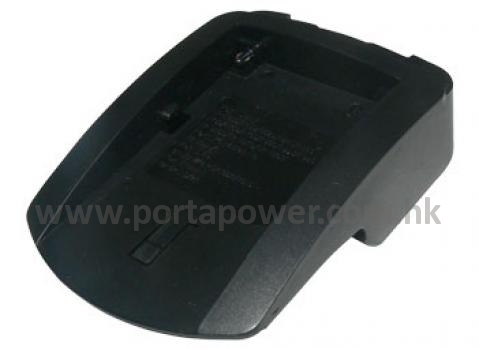

Charger Plate
AVP550
Charger Plate
Dimensions: 77.50 x 55.80 x 24.00 mm
Weight: 19 g

Adaptor
AVMPA
Adaptor
Dimensions: 83.57 x 58.27 x 78.74 mm
Weight: 548.7 g
Input Voltage: 240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1740 mm
Safety Requirements: --
AVMPE
Adaptor
Dimensions: 81.93 x 56.18 x 85.41 mm
Weight: 542.2 g
Input Voltage: 230 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1760 mm
Safety Requirements: --
AVMPK
Adaptor
Dimensions: 80.83 x 55.37 x 78.10 mm
Weight: 542.7 g
Input Voltage: 110 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1760 mm
Safety Requirements: --
AVMPSS
Adaptor
Dimensions: 71.40 x 49.60 x 49.00 mm
Weight: 115.8 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1820 mm
Safety Requirements: --
AVMPSA
Adaptor
Dimensions: 71.61 x 56.05 x 59.46 mm
Weight: 128 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1810 mm
Safety Requirements: --
AVMPSE
Adaptor
Dimensions: 71.21 x 42.47 x 67.46 mm
Weight: 104.4 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1740 mm
Safety Requirements: --
AVMPSK
Adaptor
Dimensions: 72.88 x 50.11 x 61.30 mm
Weight: 121.65 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1770 mm
Safety Requirements: --
AVMPSU
Adaptor
Dimensions: 71.26 x 42.39 x 46.82 mm
Weight: 99.4 g
Input Voltage: 100-240 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1750 mm
Safety Requirements: --
AVMPU
Adaptor
Dimensions: 83.82 x 58.52 x 66.99 mm
Weight: 461.1 g
Input Voltage: 220 V
Output Voltage: 12 V
Output Current: 1 A
Cord Length: 1750 mm
Safety Requirements: --


Combo Sets for Choice
Product Code Descriptions Weight (g)
AVMP550A AVMP + AVP550 + AVMPA 663.7
AVMP550AZ AVMP + AVP550 + AVMPA 629.2
AVMP550E AVMP + AVP550 + AVMPE 657.2
AVMP550EZ AVMP + AVP550 + AVMPE 622.7
AVMP550K AVMP + AVP550 + AVMPK 657.7
AVMP550SS AVMP + AVP550 + AVMPSS 230.8
AVMP550SSZ AVMP + AVP550 + AVMPSS 196.3
AVMP550KZ AVMP + AVP550 + AVMPK 623.2
AVMP550SA AVMP + AVP550 + AVMPSA 243
AVMP550SAZ AVMP + AVP550 + AVMPSA 208.5
AVMP550SE AVMP + AVP550 + AVMPSE 219.4
AVMP550SEZ AVMP + AVP550 + AVMPSE 184.9
AVMP550SK AVMP + AVP550 + AVMPSK 236.65
AVMP550SKZ AVMP + AVP550 + AVMPSK 202.15
AVMP550SU AVMP + AVP550 + AVMPSU 214.4
AVMP550SUZ AVMP + AVP550 + AVMPSU 179.9
AVMP550U AVMP + AVP550 + AVMPU 576.1
AVMP550UZ AVMP + AVP550 + AVMPU 541.6
Standard Packaging
Short Code: D08
Dimensions: 84 x 44 x 105 mm
Packing Code: A06-n/a-D08
Short Code: D09
Dimensions: 180 x 112 x 65 mm
Packing Code: N/A-N/A-D09
Packing Method
White Box
Short Code: D09
Dimensions: 180 x 112 x 65 mm
Capacity: 1 pc charger
->
